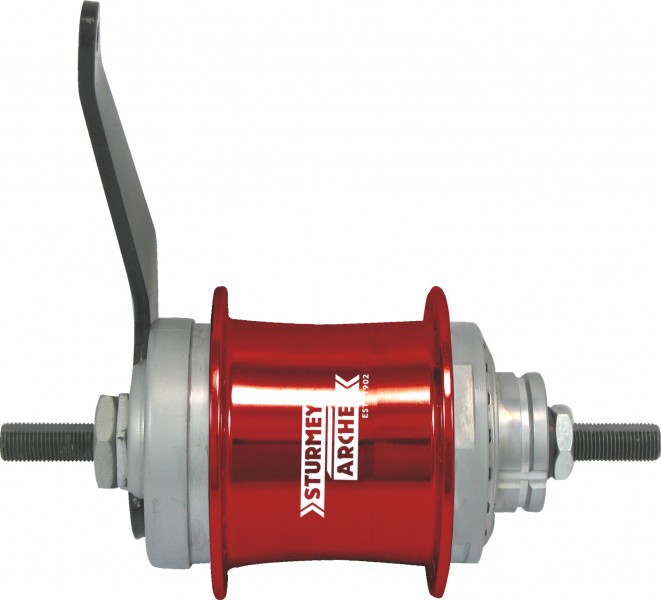

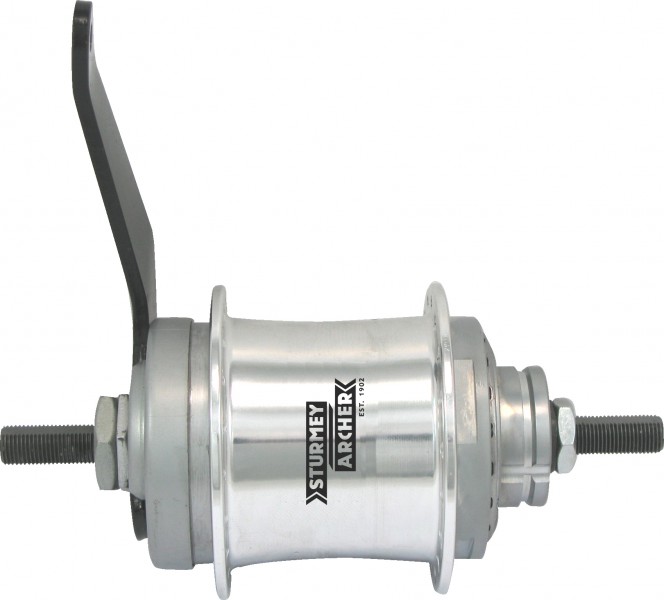

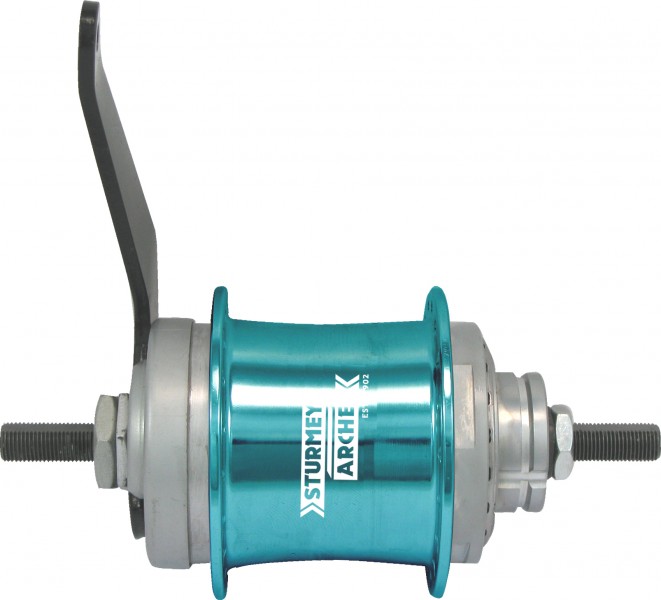

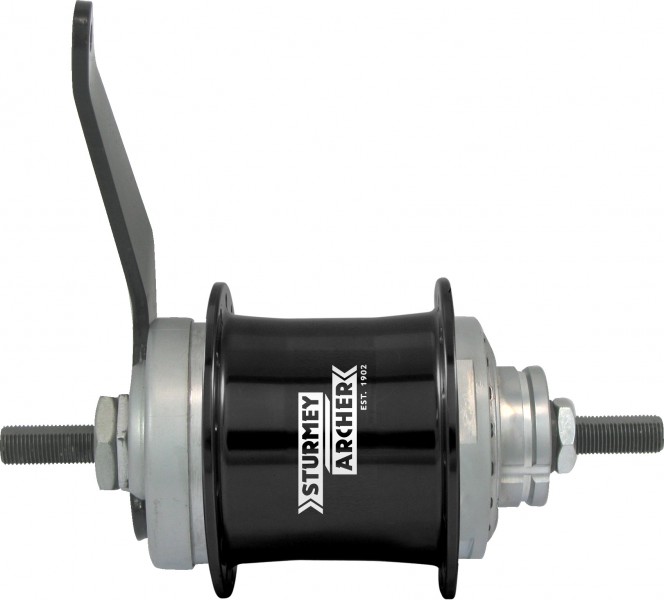

Sturmey Archer S2C DuoMatic KickShift costerbrake gear hub

Description

• Duomatic Kick Shift 2 speed hub with coaster brake
• Kick Shift to change gears
• No shifter cable or associated wear issues
• Gear ratio of 138%
• New double anodize finish available in Black, Silver, Red, Gold, Purple, and Turquoise
• Available now with high polish hubshell

Specs for 162mm Axle

• Hub Shell Material - 6061 Aluminum
• Axle Diameter - 13/32” Slotted
• Axle Length - 162mm
• Over Locknut Dimension - 116mm
• Right Axle Protrusion Length - 23mm
• Left Axle Protrusion Length - 23mm
• Spoke Holes - 36
• Pitch Circle Diameter - 67mm
• Center to Flange Right - 26.9mm
• Center to Flange Left - 29.7mm
• Flange Width - 53mm
• Spoke Compatibility - 13g or 14g
• Sprocket Teeth - 13T through 22T
• Chain Line: 1/8” Flat 43mm
• Chain Line: 1/8” Dished 41.2mm, 44.8mm
• Chain Line: 3/32” Flat 42.6mm, 43.4mm
• Chain Line: 3/32” Dished 41.1mm, 44.9mm

• Weight - 1400g

Gear Ratio

• Overall Range - 138%
• Gear 1 - 100% Direct Drive
• Gear 2 - 138% (+)38% (Gear 1 + 38%)
