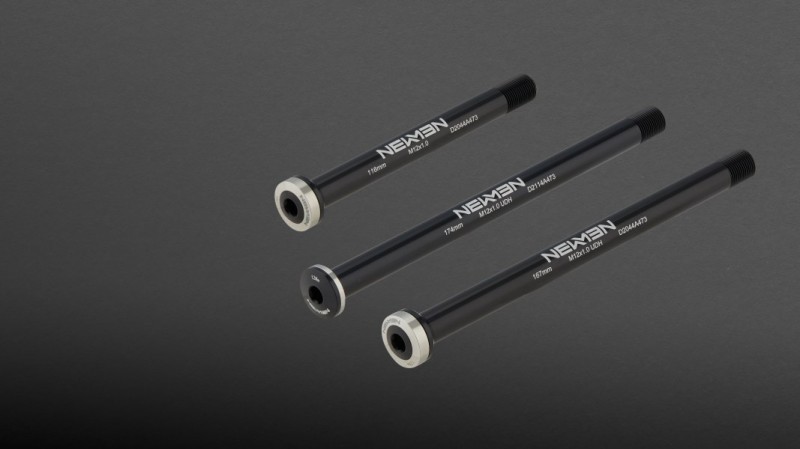

Newmen Thru Axle M12x1.0 X-12 UDH rear axle

With thru axles from Newmen, your rear wheel is reliably secured at all times. In addition, your favorite is significantly enhanced by the great look. The excellent workmanship ensures long-lasting durability and the low weight will delight you when you look at the scales.


Technical data

Material: Aluminum
Hub standard: 12x148 mm Boost
Compatibility: X-12 rear triangle with UDH derailleur hanger standard
Axle length: 167 mm
Axle diameter: 12 mm
Thread pitch: M12x1
Thread length: 15 mm
Contact surface not threaded side: conical (X-12 standard)
Tool holder: 6 mm hexagon socket
Max. permissible torque: 12 Nm
Color: silver-black

Weight according to manufacturer: n.a.
Weight self-weighed: 45g
