Shimano Deore XT (WH-M8200-B) Tuebeless wheelset

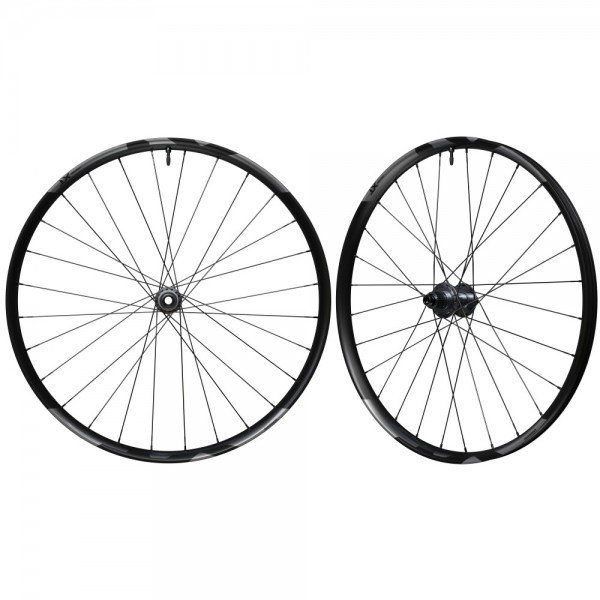

Shimano Deore XT WH-M8200-B wheelset
Grounded In Performance. Lightweight yet robust. This makes the WH-M8200 wheels from the current Deore XT series suitable for both Cross Country and Enduro. The versatile wheels are equipped with durable aluminum rims and feature an improved hub design, which facilitates maintenance and ensures maximum durability thanks to an excellent sealing.

At the same time, the intelligent seal design in combination with the cartridge bearings, which also offer adjustable preload, ensures smooth as well as even rolling behavior and a correspondingly lower air resistance during rotation. In addition, the rear hub is equipped with an optimized Direct Engagement freewheel system, which enables a faster response with a pressure angle of up to 3.5 degrees. The connection between the rim and hub is ensured by 28 high-quality stainless steel spokes on both the front and rear wheel. The result is not only a balanced compliance and stiffness, but also a deceleration-free as well as reliable ride feel on the Trail.


Technical details of the Shimano Deore XT wheelset
rims: aluminum (painted)
rim shape: hooked, asymmetrical (with offset)
rim joint: welded
tire type: Clincher, Tubeless compatible
wheel size: 29 inch (700C)
outer width: 34.7 mm / inner width: 30 mm / profile height 19.8 mm
recommended tire width: 2.3-2.6 inch

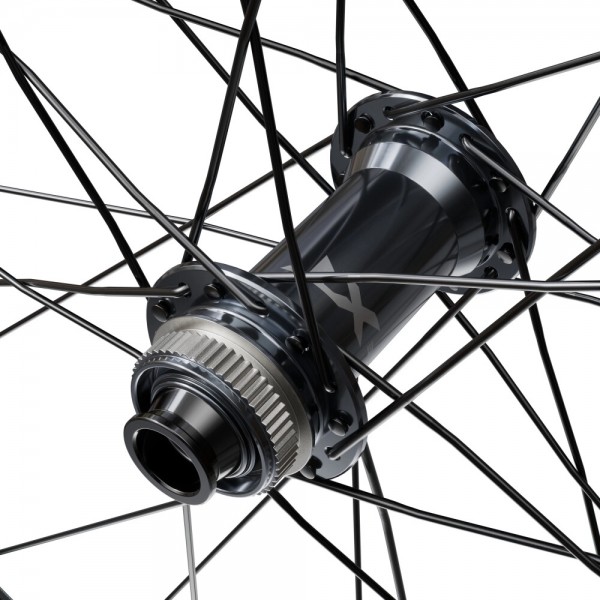

hub shell, axles, freewheel body: aluminium (anodized)
brake disc interface: Centerlock
freewheel system: Direct Engagement (ratchet type, max. 3.5° pressure angle)
bearings: cartridge type, steel (SUJ2), radial
seals: labyrinth, contact
installation dimension: 15 x 110 mm / 12 x 148 mm (thru axle, Boost)
spokes: stainless steel / nipples: aluminum
spoke shape: J-Bend, butted (2.0 - 1.8 mm)
spoke count: 28 (each)
