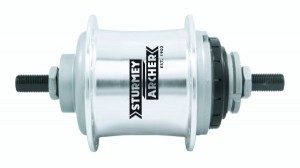

Sturmey Archer S-RF5(W) specs for 119 mm OLD
• Hub Shell Material: 6061 Aluminum
• Axle Diameter: 13/32” Slotted
• Axle Length: 175 mm
• Over Locknut Dimension: 119 mm
• Right Axle Protrusion Length: 24 mm
• Left Axle Protrusion Length: 32 mm
• Spoke Holes: 36
• Pitch Circle Diameter: 67 mm
• Center to Flange Right: 27.6 mm
• Center to Flange Left: 29.0 mm
• Flange Width: 56.6 mm
• Spoke Compatibility: 13g or 14g
• Sprocket Teeth: 13T through 22T
• Chain Line: 1/8” Flat 45.6 mm
• Chain Line: 1/8” Dished 44 mm, 47.4 mm
• Chain Line: 3/32” Flat 45.3 mm, 45.9 mm
• Chain Line: 3/32” Dished 43.5 mm, 47.7 mm
• Indicator Chain: HSA585 Mark Yellow (included) / HSA717 Mark Navy Blue (Navy Blue only to be used in conjunction with HMN420 Short Guide Nut)
• Finish: Anodized Alloy
• Weight: 1090 grams
Gear Ratio
• Overall Range: 256%
• Gear 1: 62.5% (-)37.5%
• Gear 2: 75% (-)25% (Gear 1 + 20%)
• Gear 3: 100% Direct Drive (Gear 2 + 33%)
• Gear 4: 133.3% (+)33.3% (Gear 3 + 33%)
• Gear 5: 160% (+)60% (Gear 4 + 20%)
|
| Unit: |
piece |
| Brake compatibility: |
csak felnifék |
| Speeds: |
5 speed |
| Chain sprockets mounting: |
3 notch mounting |
| Complete set: |
yes |
| Accessories: |
fogaskerék, Shifter cable set, szerelék, váltókar |
| Flange distance (right): |
32 mm |
| Flange PCD (right): |
67 mm |
| Flange distance (left): |
31 mm |
| Flange PCD (left): |
67 mm |
| Over Locknut Distance (O.L.D.): |
119 mm |
|
