Description

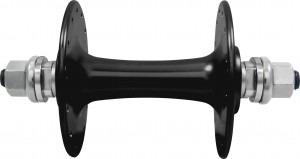

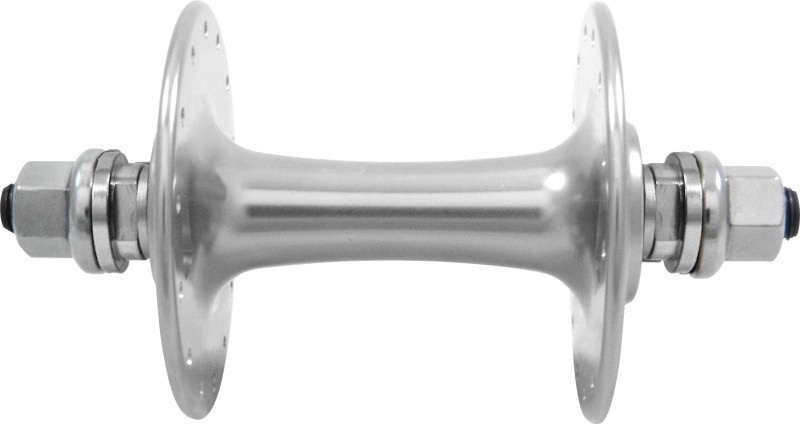

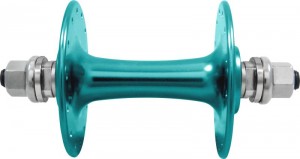

• Front track hub
• Perfectly matched to the S3X fixed gear rear hub
• New double annodize finish and many color options
Specs
• Hub Shell Material - 6061 Aluminum
• Bearing Type - Sealed Cartridge x 2
• Axle Diameter - 9mm
• Axle Length - 145mm
• Over Locknut Dimension - 100mm
• Spoke Holes - (B) 36H, (C) 32H, (D) 28H, (E) 24H, (F) 20H
• Pitch Circle Diameter - 61.5mm
• Center to Flange Right - 35.3mm
• Center to Flange Left - 35.3mm
• Flange Width - 71.5mm
• Finish - Double Annodized (A) Alloy, (B) Black, (G) Gold, (R) Red, (1) Blue, (2) Purple
• Spoke Compatibility - 13g or 14g
• Weight - 273.5g
|
| Unit: |
piece |
| Bearing: |
ipari csapágyazás |
| Flange height: |
magas |
| Axle type: |
9 mm normáltengely |
| Quick release?: |
no |
| Brake compatibility: |
csak felnifék |
| Hub body material: |
Aluminium |
| Flange distance (right): |
15 mm |
| Flange PCD (right): |
61 mm |
| Flange distance (left): |
15 mm |
| Flange PCD (left): |
61 mm |
| Over Locknut Distance (O.L.D.): |
100 mm |
|
