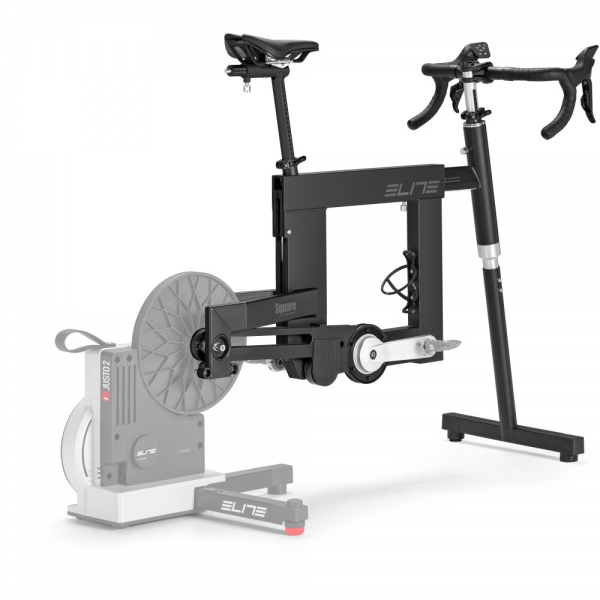

Elite Square Smart Frame
The Square Smart Frame joins Elite's ecosystem of smart bike accessories to transform your training routine and make it more agile, comfortable and technologically advanced.
To improve your training routine: Elite Square Smart Frame
Square is a smart frame with a high-quality virtual rear derailleur that allows you to precisely customize the controls to the shifting systems of the leading manufacturers (SHIMANO, SRAM and Campagnolo) to replicate your bike's components down to the exact shifting configuration.
You can customize the number of gears and teeth of the cassette, the number of teeth of each chainring or choose from pre-built profiles or convenient sequential shifting via the dedicated Square app.

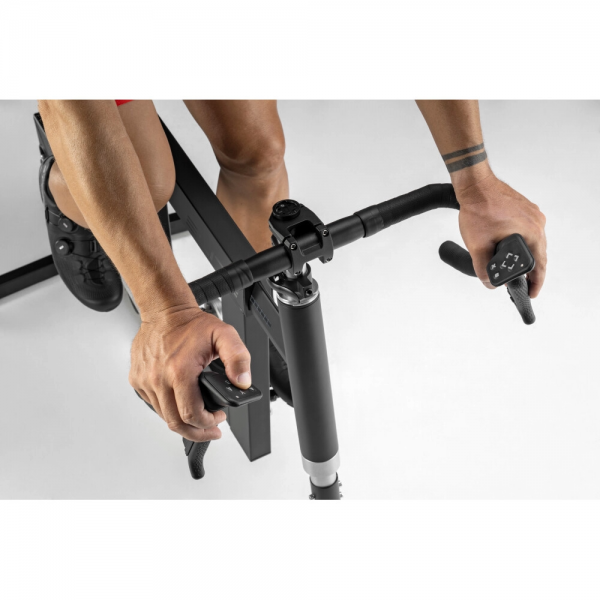

The shifting feel is realistic: simply operate the levers and buttons on the handlebars as you would on your outdoor bike.

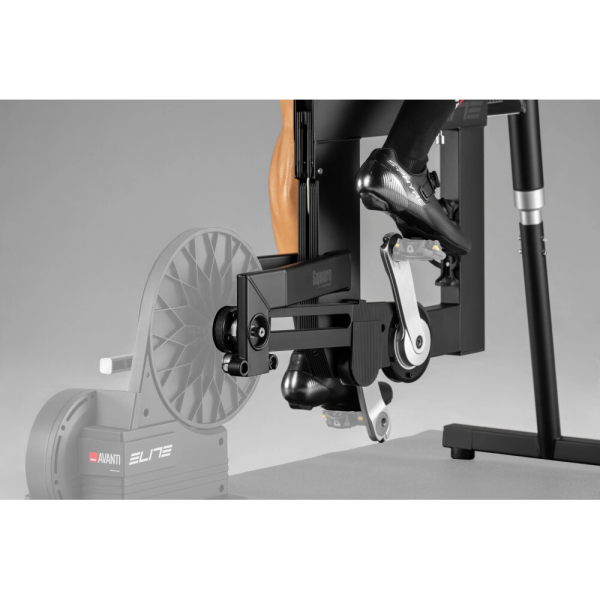

The belt drive offers a smooth, round pedal stroke without noise or vibration: With Square, workouts reach unbeatable levels of silence.

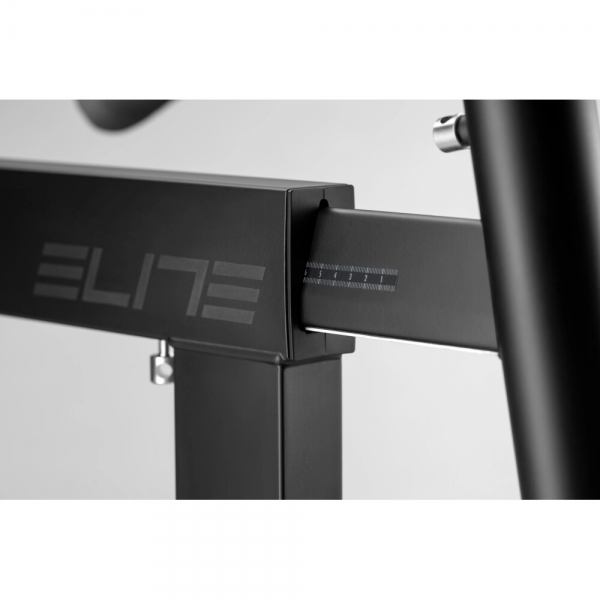

Square is extensively adjustable and offers great adaptability for users of different sizes, with many adjustment options for saddle height, saddle tilt, saddle height and saddle angle.saddle height, saddle tilt with forward/backward position, handlebar height with forward/backward position, top tube length and crank arm length.
With its modular design, the Square Smart Frame offers a bike setup that can be updated at any time, with infinite configuration and operational options, whether in conjunction with the industry's most popular smart exercise bikes or the most technologically advanced accessories in the Elite indoor ecosystem.
Features - Elite Square Smart Frame
Maximum adjustable frame, for sizes from XS to XL
Compatible with all wheel-off trainers incl. Rizer incline simulator
Can simulate all major shifting systems
Equipped with a height-adjustable front support
Extremely quiet thanks to belt drive
Product features
Model: Square Smart Frame
System: Belt drive
Dimensions: 915 x 105 x 445 mm (H x L x W at smallest setting)
Compatibility: All Wheel-Off trainers, Rizer and Aria
Handlebar height: 84.5 - 106 cm
Handlebar width: 42 cm
Drop angle (flare): 6°
Saddle height: 57 - 88 cm
Saddle width: 150 mm
Saddle offset:
Min.: 170 mm
Max: 293 mm
Horizontal distance between the bottom bracket center and the head tube:
Min.: 498 mm
Max.: 814 mm
Vertical distance between the bottom bracket center and the middle of the top edge of the head tube:
Min.: 380 mm
Max: 495 mm
Rider:
Min.: 152 cm
Max: 198 cm

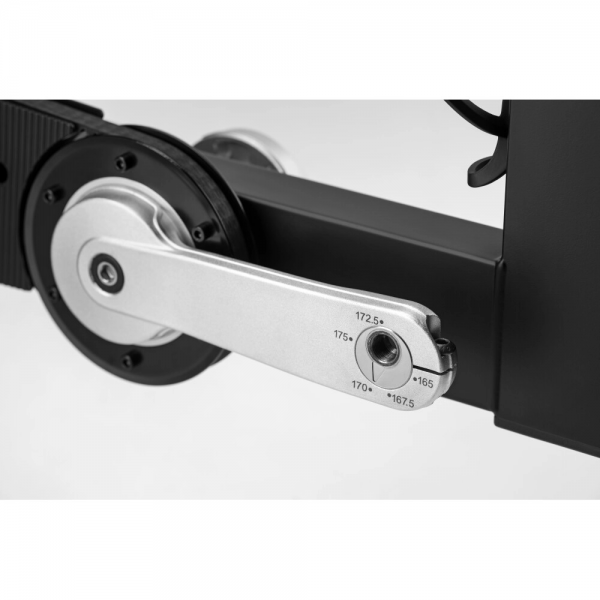

Crankarm length: 165 mm, 167.5 mm, 170 mm, 172.5 mm, 175 mm
Data transmission: Bluetooth, ANT+FE-C
Max. rider weight: 110 kg
Material
Steel, aluminium, plastic
Weight
23 kg (manufacturer information)
|
|
