Shimano SM-PCE02 Diagnostic Device - PC Interface for Di2/STePS | B3

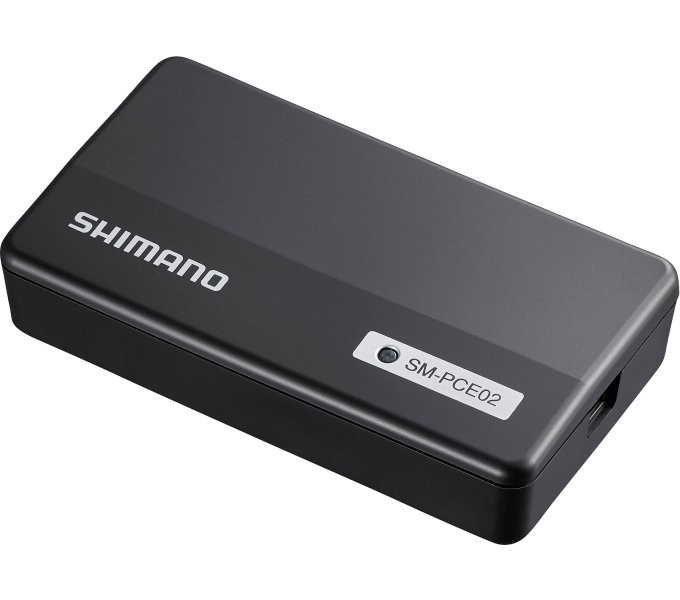

The Shimano SM-PCE02 interface is used to set and update electronic Di2 and STePS components. A function for checking battery consumption can detect the occurrence of leakage currents, which have a negative effect on the current flow. The diagnostic device is required as an interface for using the E-Tube software.
In addition to the USB cable for linking to the computer, the current B3 version of the PC linkage device includes two cables in order to establish a connection with E-Tube systems of the 1st generation (SD50) and the 2nd generation (SD300).
E-Tube Project
The E-Tube Project is a program for maintenance and fault diagnosis of various devices. Via E-Tube software, for example, firmware updates are imported or changes are made to the switching operation of all shifters and switches. The E-Tube Project includes the following main functions:
Customize. This option makes it possible to customize general functions and the operation of the system to individual needs.
Fault diagnosis. When one or more devices are connected, this function checks their operating status and identifies those with a fault. However, fault diagnosis is not used to rectify the faults found.
Firmware update. This function can be used to update the firmware of the individual devices. The firmware can be downloaded from the E-Tube Project website.
Presets. This function enables all settings of connected devices to be read and written or rewritten simultaneously. The settings read out can be saved in a file. The settings made can be written to several bikes in succession.
Unit protocol recording (only for e-bikes). Retrieves various types of unit data and displays them as a report. The unit settings and battery status can be checked in this report.

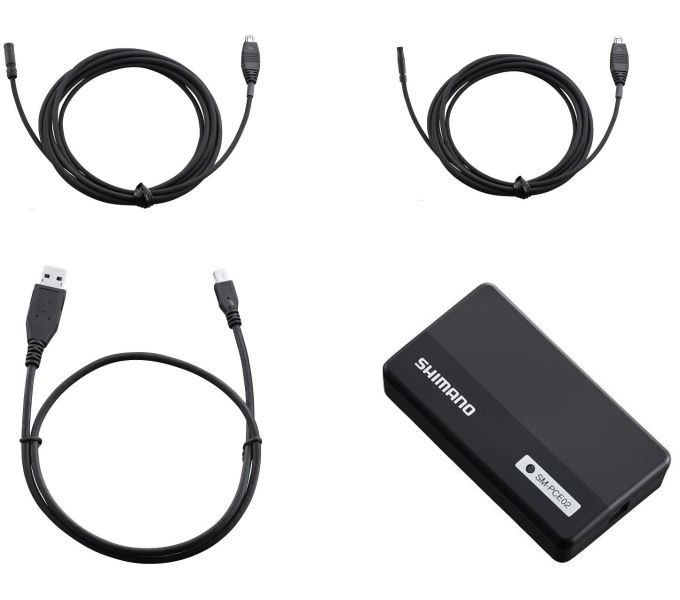

Scope of supply:
diagnostic unit incl. 1 USB cable and 2 connection cables (EW-SD50 + EW-SD300)
|
|
