Quality redefined!

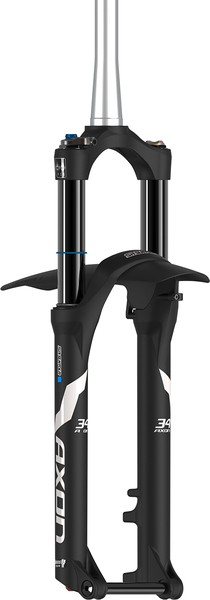

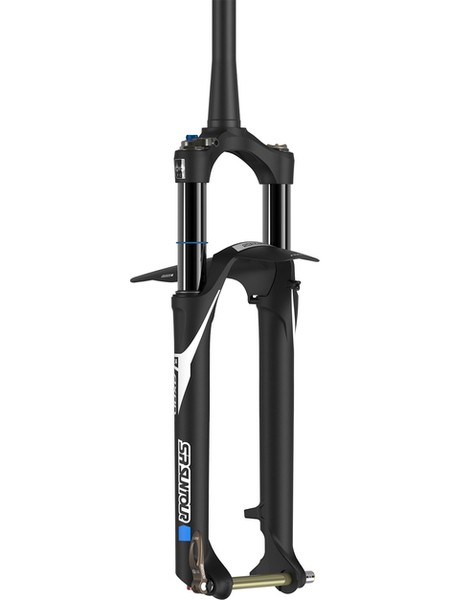

The AXON comes with 34mm stanchions and the features of a modern XC fork. Speed, challenging terrain and hard climbs, that's where the AXON comes in with its PCS cartridge. It offers stunning performance coupled with easy maintenance and this at an affordable price. Suitable for MTB as well as E-MTB.
intended use Cross Country
for 29" wheels with up to 63mm tire width
130mm travel
air spring & RLRC-PCS cartridge damper
adjustable low speed rebound
adjustable low speed compression
aluminium steerer tube, tapered 1 1/8-1 1/2", 272mm
forged A6000 aluminium crown
34mm stanchions in A7000 aluminium
magnesium fork tubes
installation dimension: 532.5mm
brake caliper mount: Postmount 160
max. brake disc size 180mm
incl. integrated mud guard
weight: approx. 1690g (manufacturer's specification)
|
| Unit: |
piece |
| Travel: |
120 mm |
| Over Locknut Distance (O.L.D.): |
110 mm |
| Stanchion diameter: |
34 mm |
| Steerer tube: |
Tapered [EN] |
| Rebound system: |
yes |
| Fork|Crown: |
simple crown |
| Compatible wheelsize: |
29" (ETRTO: 622 mm) |
| Suspension type: |
air spring |
| Fork lockout: |
kormányról |
| Intended use: |
MTB |
| Brake compatibility: |
tárcsafék [EN] |
| Axle type: |
15 mm átütőtengely |
| Steerer tube material: |
Aluminium |
| Steerer tube length: |
255 mm |
|
