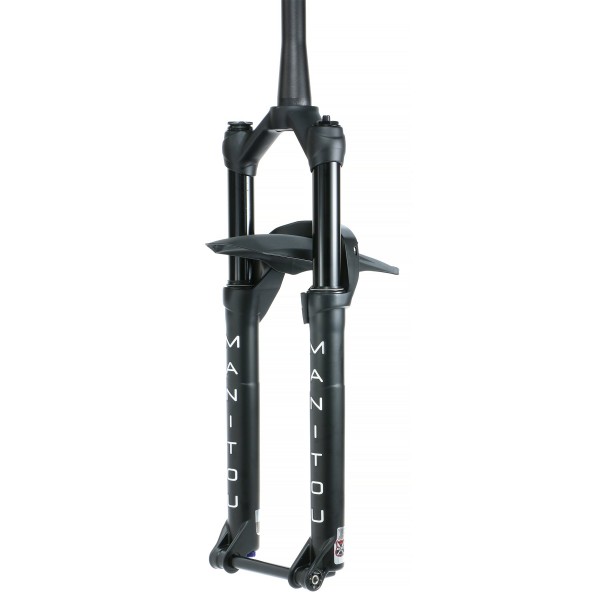

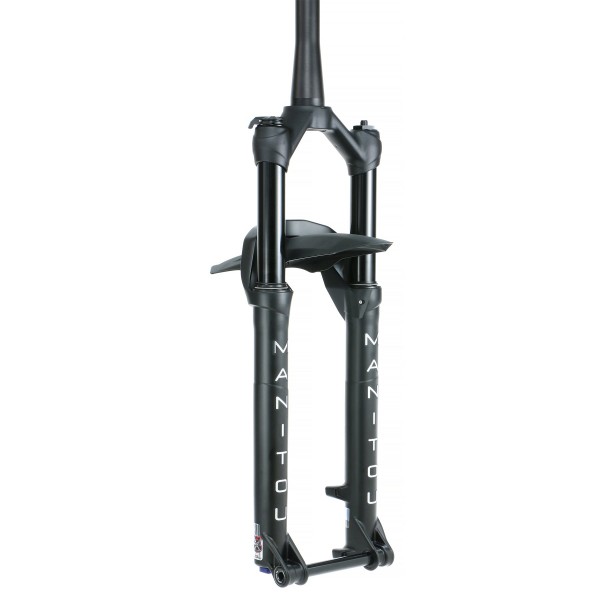

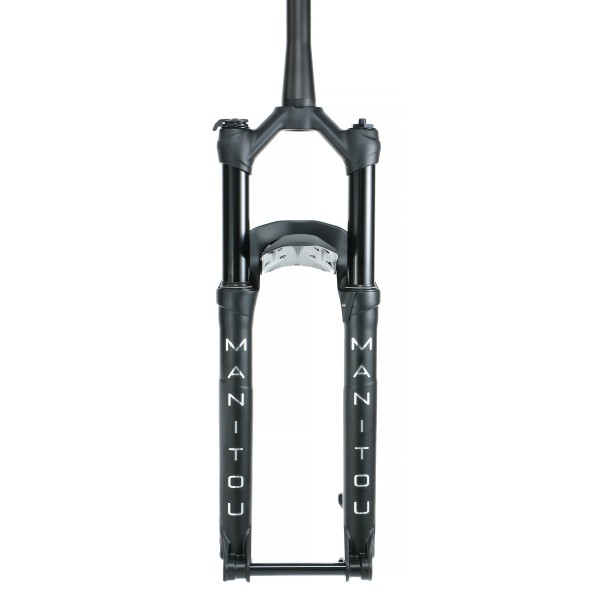

Manitou Machete Comp (27.5"+/29") TS Air Spring Boost suspension fork for 29er wheel

Machete is purpose-built for slicing trails!
This Machete comes with Kwik Toggle damping, based on the Absolute+ damping, in a lightweight chassis. Lockout and rebound adjustments add up to the right mix of adjustability and simplicity for a fork that takes a beating and comes back strong for your next ride.

Furthermore it offers 32mm aluminium stanchions, a lightweight hollow forged crown and a 15x110mm Boost thru axle (HEX). The travel can be adjusted with spacer.


TS air spring
Travel Stabilization - This proven system is easy to set up and handles any weight with excellent control.
Kwik Toggle
Based on the Absolute Plus compression damper, Kwik Toggle achieves on-off lockout simplicity in a lightweight, cost-effective package.

KEY FEATURES
•100mm and 120mm models available
•TS Air Spring
•Kwik Toggle Compression Damping
•TPC Rebound Damping

•Wheel Size: 27.5" 27.5+/29"
•Weight: 1862g (27.5") 1885g (27.5+/29")
•Offset: 37/44OS (27.5") 44/51OS (27.5+/29")
•Ride Height: 471-511mm (27.5") 485-525mm (27.5+/29")
•Travel: 80-120mm Internally adjustable in 10mm increments
•Spring: TS Air
•Compression Damping: Kwik Toggle
•Rebound Damping: in-leg adjustable TPC
•Adjustments: Air, Rebound, Lockout
•Steerer: 1.5" Tapered
•Crown: Forged Aluminum, Hollow Bore Matte Black
•Leg Diameter: 32mm
•Leg Material: 6000- Series Straight Wall Aluminum
•Brake: Post Mount 160mm (203mm Max)
•Axle: 15mm x110mm Hexlock
•Max Tire Size: 68mm (27.5") 77mm (27.5+), 68mm (29)
•Options: QR15, Fender Kit, Remote Lockout
