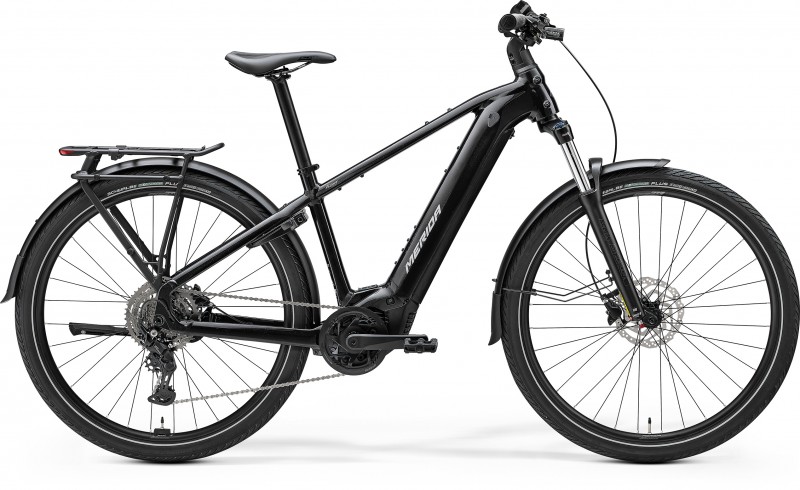

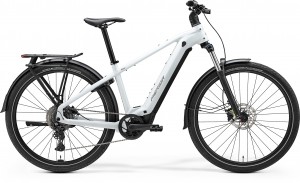

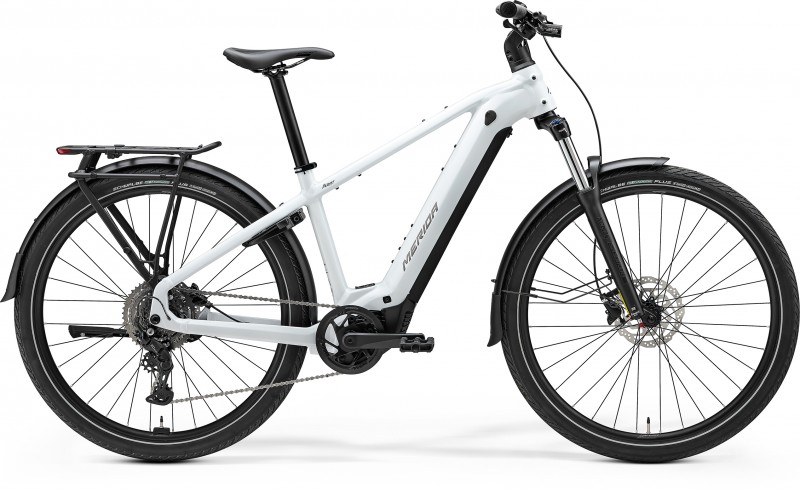

Merida eFLOAT TK 400 EQ touring pedelec
Description
Opinions
|
Frame
|
eFLOAT LITE II ; MAT aluminium; 29"x2.4" with fender max. WHS; 148x12 AST; intube |
|
Fork
|
SR Suntour XCM34-Boost; Coil; 120 STR; 29x2.4" max WHS
Fork lockout:
from fork crown
|
|
Handlebar
|
MERIDA EXPERT; MAT aluminium; 680 WHB; 15 RHB |
|
Stem
|
MERIDA EXPERT TK III; MAT aluminium; 31.8 DSH; |
|
Headset
|
Acros ICR MERIDA INTEGRATED neck w/ Blocklock |
|
Tires
|
Continental eContact Plus; 622-55; wire; reflecting line |
|
Rims
|
MERIDA COMP TR II; 110x15 WHF; 148x12 WHR; 28 IWR; MAT aluminium; Tubeless ready (tubeless tape and valves not included); 29"
Tyre size:
29" (ETRTO: 622 mm)
|
|
Front hub
|
Shimano TC500; 15x100 WHF; 32 SPH; Centerlock |
|
Rear hub
|
Shimano TC500; 12x148 WHR; 32 SPH; Centerlock |
|
Cassette
|
Shimano LG400-9; 11-46 ATC; 9 GER |
|
Cranks
|
FSA Direct Mount Steel MT Chainring and Chainguard; 38 ATC on FSA CK-220 wide E-Bike Forged Crankset; 165mm for all sizes |
|
Pedal
|
VP VPE-891 |
|
Front derailleur
|
- |
|
Rear derailleur
|
Shimano Cues U4000; GS |
|
Shifters
|
Shimano Cues U4000-9 |
|
Brakes
|
Shimano MT-200; 2 piston
Brake type:
hidraulic disc brake
|
|
Saddle
|
MERIDA EXPERT TK II; V-mount |
|
Seat post
|
MERIDA EXPERT CC; MAT aluminium; 34.9 DSP; 0 SSB |
|
Derailleur system
|
láncváltó |
|
Frame material
|
alumínium ötvözet |
|
Chain
|
Shimano LG500 |
|
Women Frame Type?
|
nem |
|
Battery
|
Bosch PowerTube
Location:
alsócsőbe integrált
Voltage:
36 V
Capacity:
16.7 Ah
Output power:
600 Wh
|
|
Engine
|
Bosch Performance Line
Engine position:
középmotor
Rated power:
250 W
|
|
Max speed with assist
|
25 km/h |
|
Speed
|
1x9 |
|
Lighting
|
van |
|
Rack
|
van |
|
Mudguard
|
van |
|
Hub dynamo
|
nincs |
|
Suspension
|
elöl
Travel:
120 mm
|
|
Sensor type
|
nyomatékszenzor |
|
Display
|
Bosch Pruion 200 |
|
Modell year
|
2025 |
|
Unit
|
db |
