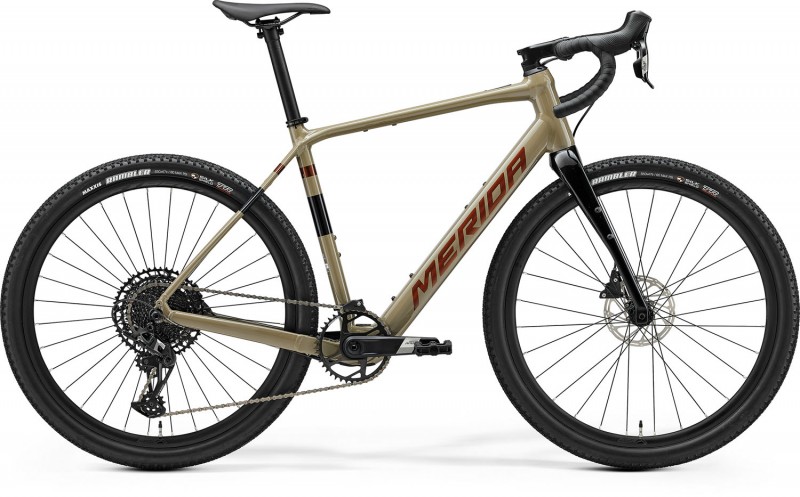

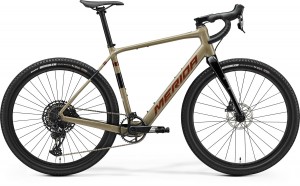

Merida eSILEX + 600 gravel pedelec
Description
Opinions
|
Frame
|
eSPEEDER LITE III; MAT aluminium; 700x45C / 700x42C (with fender) / 27,5x47C max. WHS; 100x9/135x9 AST; BSA BBR |
|
Fork
|
MERIDA SILEX CF2; carbon; max. 700x42C / 700x35C (with fender) / max. 50x650B WHS
Fork lockout:
no/without
|
|
Handlebar
|
MERIDA EXPERT GRII; MAT aluminium; 400mm (XS-S) , 420mm (M) , 440mm (L/XL) |
|
Stem
|
MERIDA TEAM CC III; MAT aluminium; 31.8 DSH; -6 ASD |
|
Headset
|
MERIDA 8158 |
|
Tires
|
Maxxis Rambler; 650Bx47; ShieldWall / TLR |
|
Rims
|
MERIDA EXPERT CX; 19 IWR; 24 HRI; MAT aluminium; Tubeless ready (tubeless tape and valves not included)
Tyre size:
700C (ETRTO: 622 mm)
|
|
Front hub
|
Shimano HB-TC500; 100x12 WHF; 28 SPH; Centerlock |
|
Cassette
|
Sram PG-1210 Eagle; 11-50 ATC; 12 GER |
|
Cranks
|
Sram Apex 1 Wide Crankset; 40 ATC |
|
Pedal
|
VP VPE-891 |
|
Front derailleur
|
- |
|
Rear derailleur
|
Sram Apex Eagle |
|
Brakes
|
Sram Apex
Brake type:
hidraulic disc brake
|
|
Saddle
|
MERIDA COMP SL; V-mount; incl. MERIDA minitool |
|
Seat post
|
MERIDA EXPERT CC; MAT carbon; 30.9 DSP; 0 SSB |
|
Frame material
|
alumínium ötvözet |
|
Chain
|
Sram SX Eagle |
|
Women Frame Type?
|
nem |
|
Battery
|
Mahle
Location:
alsócsőbe integrált
Voltage:
36 V
Capacity:
6.9 Ah
Output power:
250 Wh
|
|
Engine
|
Mahle X30
Engine position:
hátsó agymotor
Rated power:
250 W
|
|
Max speed with assist
|
25 km/h |
|
Speed
|
1x12 |
|
Shifting actuation
|
mechanikus |
|
Sensor type
|
nyomatékszenzor |
|
Modell year
|
2025 |
|
Unit
|
db |
